OFMCBSRHL Hydraulic Log Splitter Pump 22GPM 2-Stage Gear Pump, HI/LO Gear Pump, 2 Stage 4000PSI Aluminum Hydraulic Gear Pump + Valve Coupling Installation Base

Brand: OFMCBSRHL

Features:

• 1-2-Stage Pump 22GPM + Valve Coupling Installation Base
• 2-Specifications: Housing Material: Aluminum Alloy; Applicable Engine Requirements: 5.5-7.5HP, 3600 RPM Idle, 1440 RPM Rated Speed; Inlet Port: 1'-1/4' Dia. Pipe Outlet Port: 3/4' NPT.
• 3-Good Sealing: Our 2-stage log splitter pumps feature a standardised design with a 1-1/4‘’ inlet, 3/4‘’ NPT outlet, 1.5‘ shaft length and 0.6’ shaft diameter to ensure compatibility with a wide range of systems while maximising sealing effectiveness and stability.
• 4-Strong Material: Made of high-strength extruded aluminum housing,and the end plate is cast steel. it can resist impact, rust, and high pressure. It has long service life.
• 5-Wide Appliaction: Suitable for applications such as presses, wood splitters, truck snowplows, machine tools and dump trailer lifts.

Part Number: 9381206515552

Details: 1-Specifications:
Inlet Port: 1'-1/4' Dia. Pipe Outlet Port: 3/4' NPT
Maximum Flow Rate: 22GPM+10%
Maximum Operating Pressure: 4000 PSI+/-10%
Maximum Operating Speed: 3600 RPM+/-10%
Housing Material: Aluminum Alloy
Applicable Engine Requirements:
5.5-7.5HP, 3600 RPM Idle, 1440 RPM Rated Speed
Gear Pump Output Shaft Length: 1.5'

2-Features

[Good Performance] - This hydraulic wood splitter pump can reach a maximum speed of 3600 RPM, a maximum working pressure of 4000 PSI and a flow rate of up to 22 GPM.

[Good Sealing] - Our 2-stage log splitter pumps feature a standardised design with a 1-1/4‘’ inlet, 3/4‘’ NPT outlet, 1.5‘ shaft length and 0.6’ shaft diameter to ensure compatibility with a wide range of systems while maximising sealing effectiveness and stability.

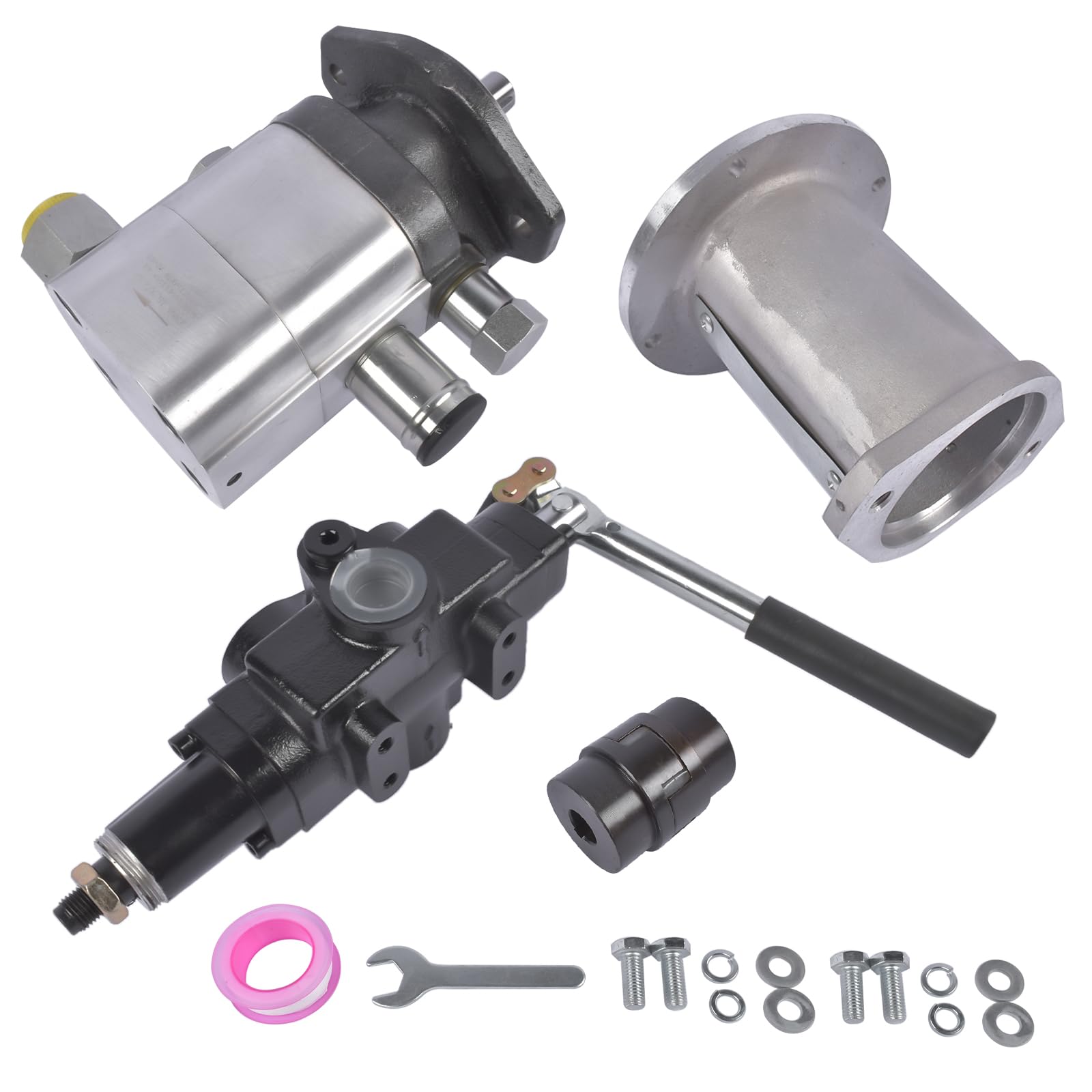

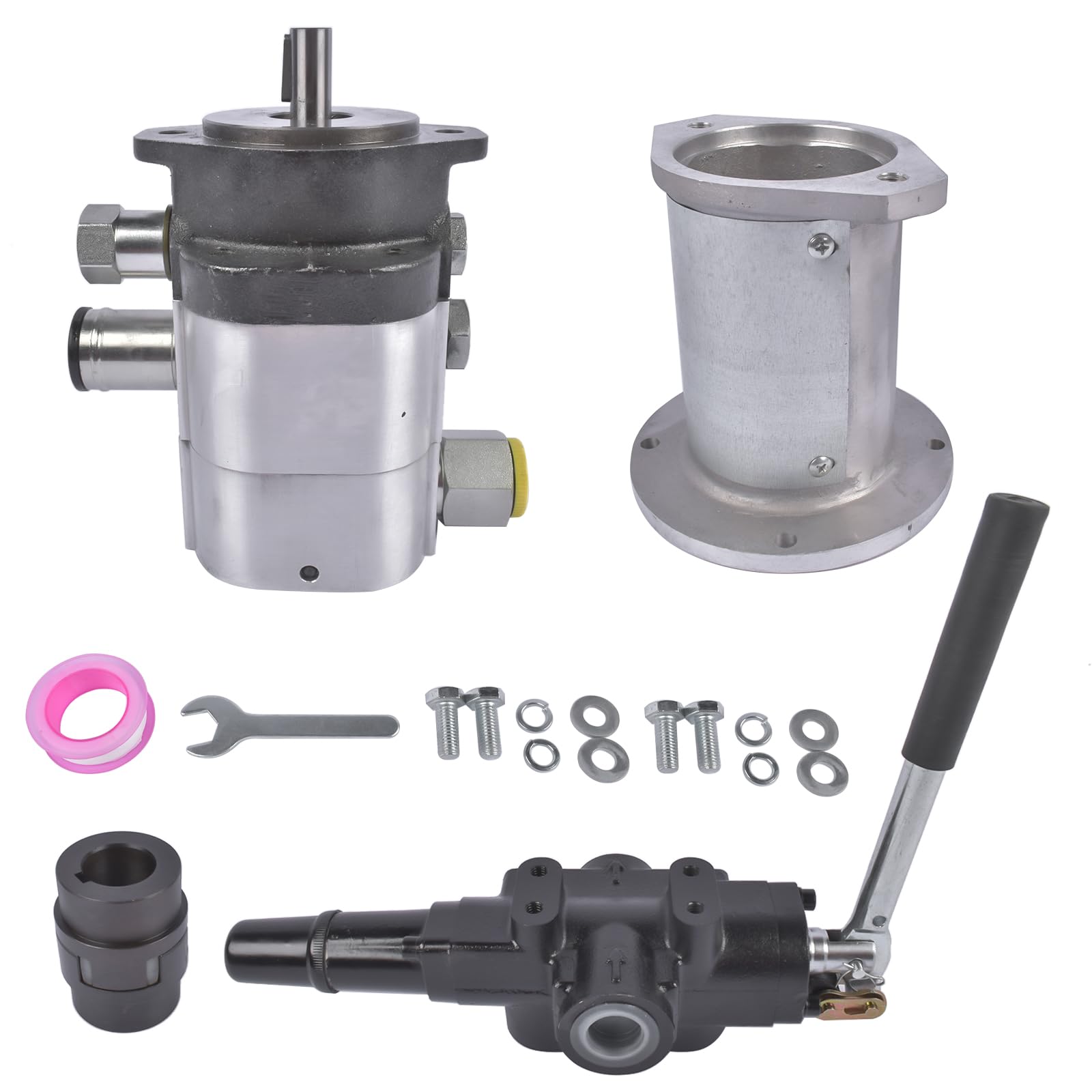

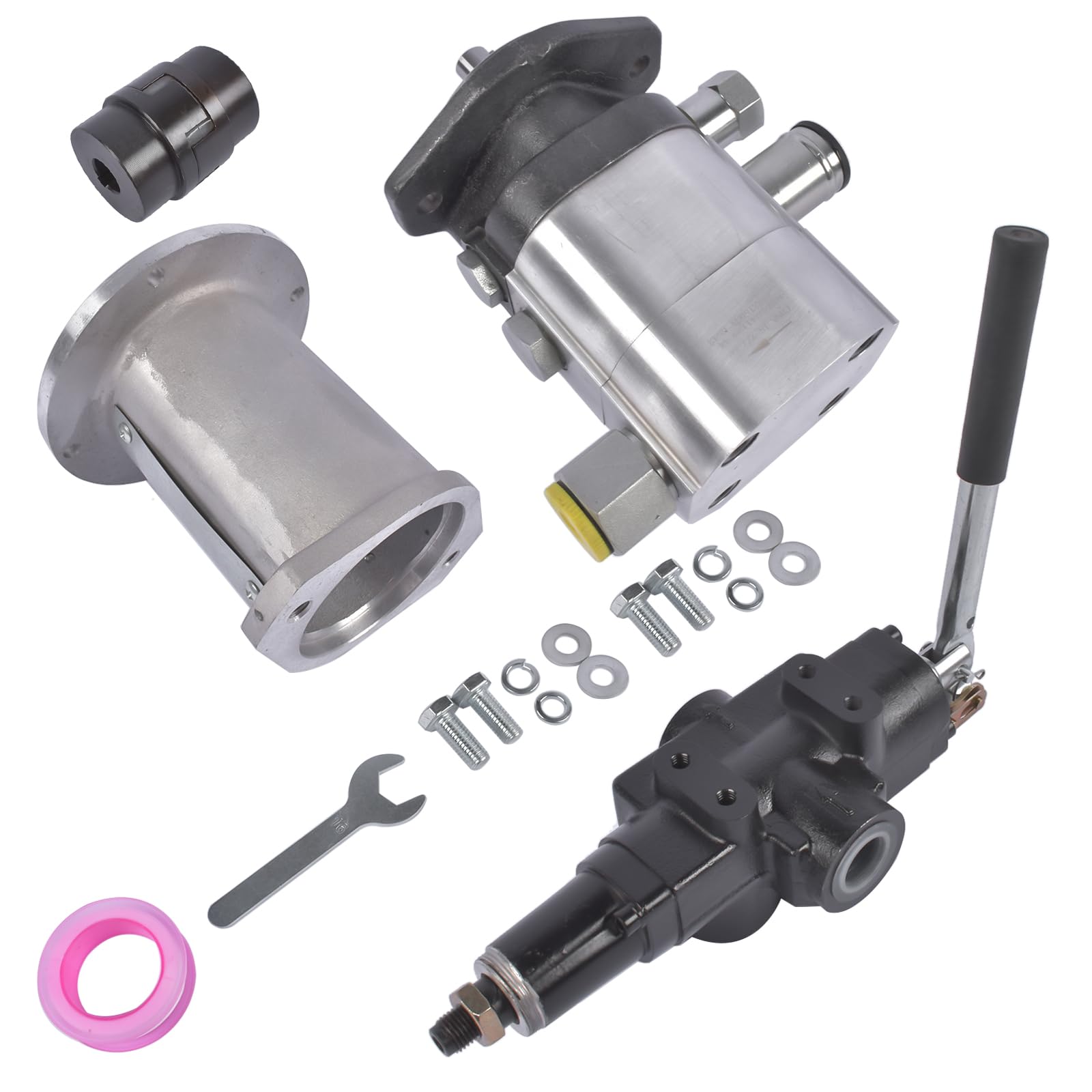

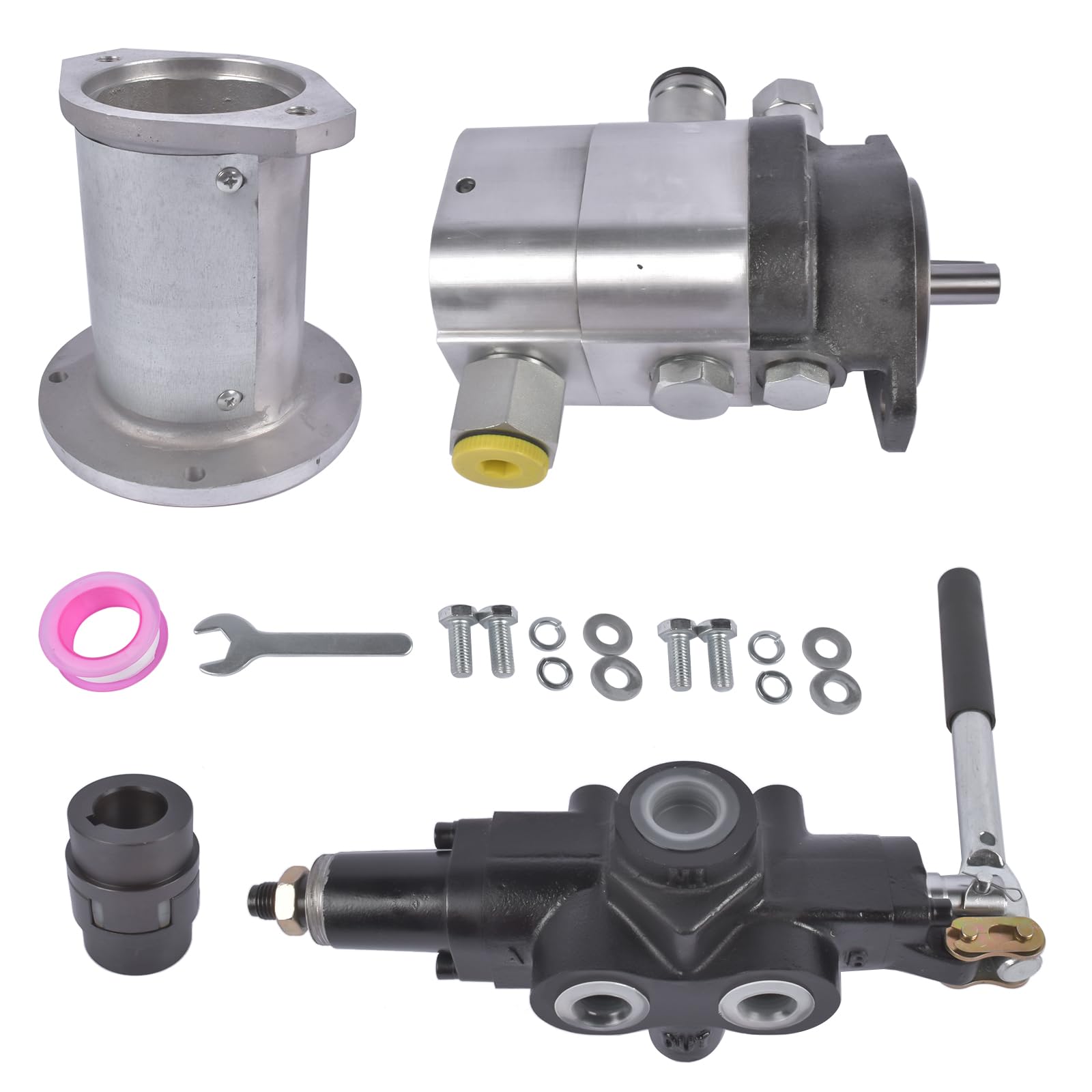

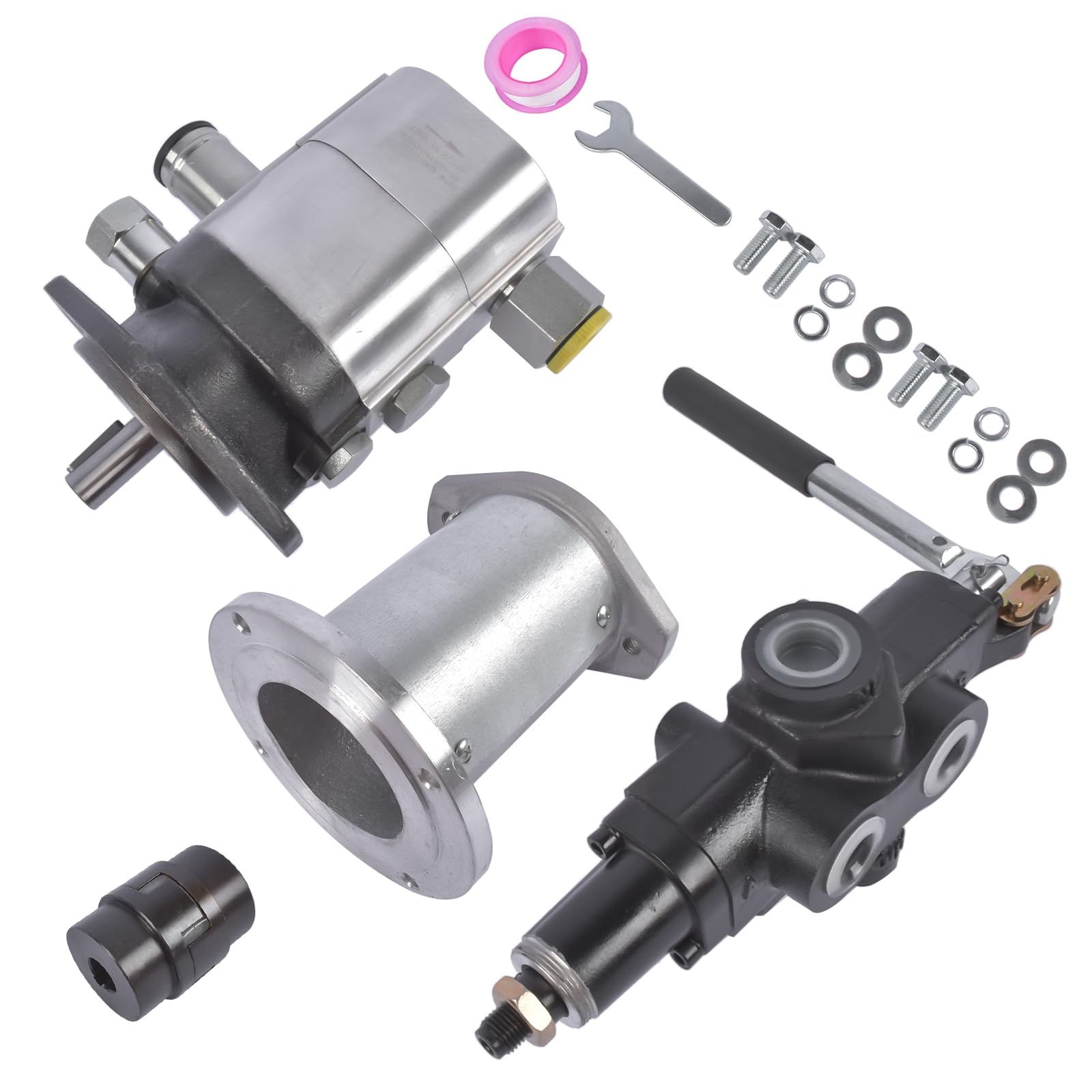

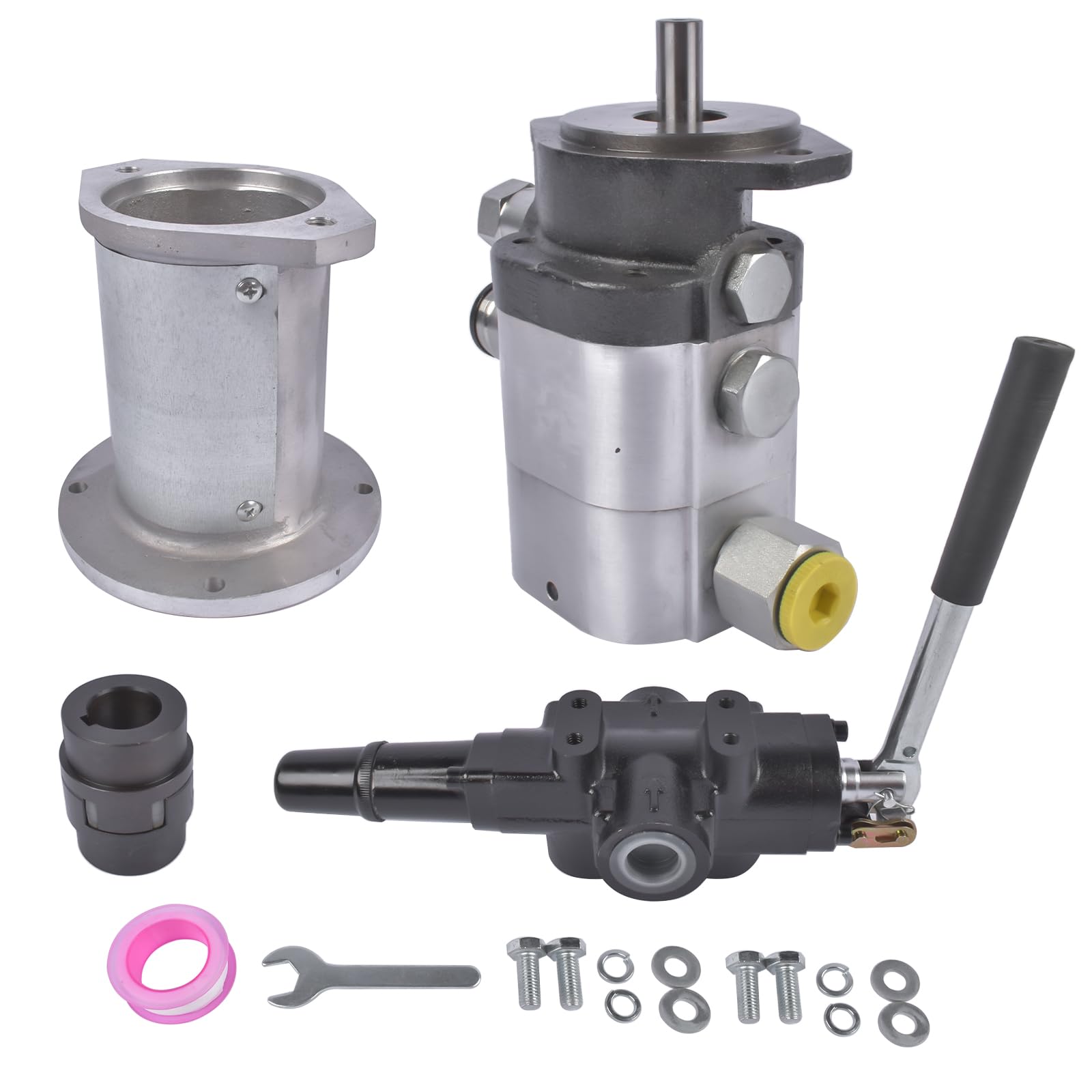

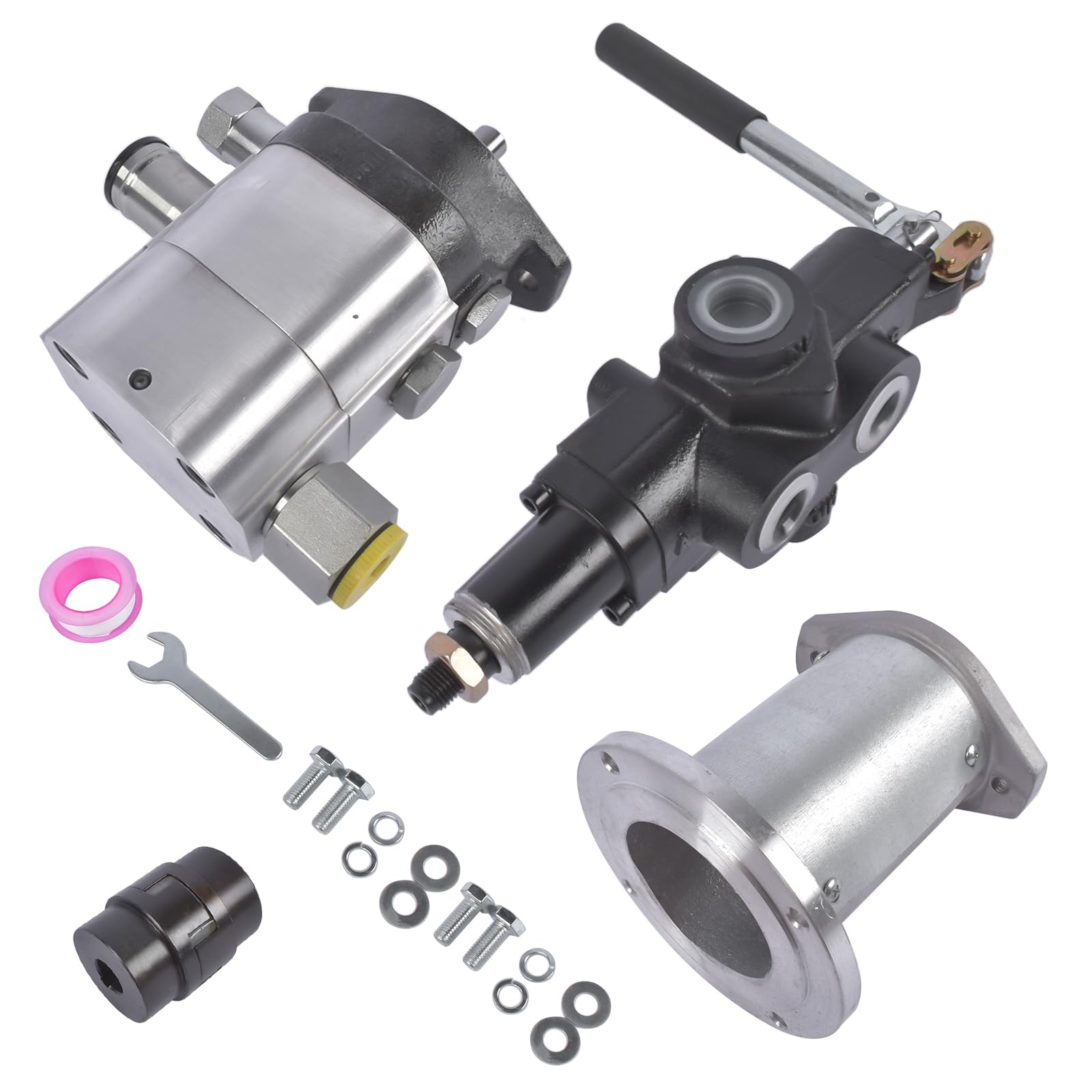

[Practical accessories] - In addition to the hydraulic log splitter pump unit, our kit includes a hydraulic directional control valve that allows you to effortlessly control the direction of movement of the hydraulic actuator. It also includes a mounting base, bolts (for mounting the pump to the base), couplings, spanners, and PTFE tape.

[Low noise operation] - This wood splitter pump operates at less than 75 decibels, allowing you to stay focused and get the job done efficiently.

EAN: 9381206527456
